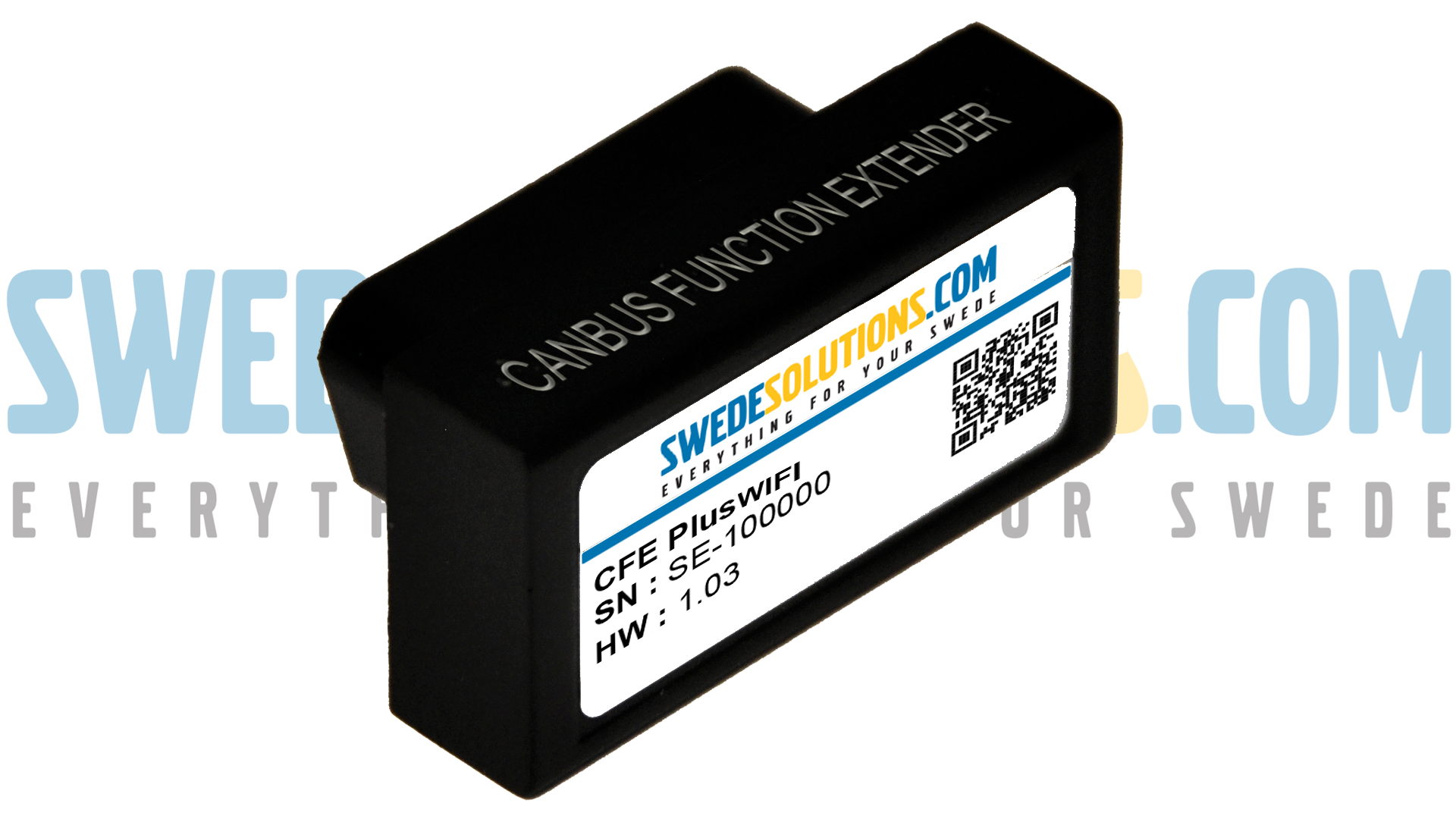

CFE Plus Wifi

0,00

Out of stock

Category: SKU: SW-11

Description

No longer available. Please look at our CFE Ultra for more information.

Adds and automates functions in a Volvo without making any changes to your Volvo!

And as always without subscription. All firmware and feature updates for this device will be free!

How does it work

For more information: https://www.swedesolutions.com/cfe-capabilities/

The CFE Plus Wifi (Unit) needs configuration to make sure the Unit knows what Volvo it is going to be used in and what and how functions should work.
This configuration is performed with the updater software (License included, directly available after purchase), installed and run on a PC with at least Windows 8.
The Unit needs to be connected to the PC with a Configuration and USB cable (Both supplied in the set).

Once you finalized the configuration and all functions are setup with the desired options; the CFE Plus Wifi can be connected to your Volvo.
The Unit connects to the Can-busses (Networks) in your Volvo and acts like an additional ECU (Computer).

To avoid possible mistakes in configuration, the Unit starts an “Initialization” after first Ignition (Made visible to the user by enabling the blue high-beam light in the dashboard while the initialization process is going on) and tries to match the made configuration with the actual Volvo.
If all matches the Initialization will finish and the Unit is ready for operation.
Now the CFE Plus is ready to perform its tasks.
For example; if you lock your Volvo with the keyfob, the CFE Plus will notice this on the Canbus and decide to close the windows for you.

WiFi

Besides the normal CFE Plus functionality; the WiFi board in the CFE Plus WiFi allows you to connect a WiFi enabled device (like a mobile phone, a tablet or even a Raspberry Pi) to the CFE Plus WiFi.
If will allow you to view engine (an other) data (live) in several different formats, in a web-browser. Just as you like, just as you want it yourself.
The source of the example HTML is open-source, available for you, available for changes, we challenge you to make the nicest and share that in the different Volvo related fora!

View/user/download : Download/View/Use here!

For now it is data-pull from CFE Plus WiFi only, but tests have already proven that 2-way data works fine!
We’ll continue working on new data to get available; you might find a certain value not available for your Volvo, in such case enter a bug report and we’ll add it asap!

CFE Plus WiFi connected to iPhone, displaying live data in different layouts:



CFE Plus WIfi connected to Raspberry-PI, displaying live data on the RTI screen:

Important note:

For P2 (S60/V70/XC70/S80/XC90) up to and including modelyear 2004, installation of the connection harness is required.
All other supported models/modelyears will allow a direct plug-and-play connection into the OBD Port (Onboard Diagnostic Port) of your Volvo.

Manuals:

CFE-Plus-P3-HLDF-Video-installation-v1.04

CFE Plus and CFE Plus WiFi Configuration tool

CFE-Plus and CFE Plus Wifi – Quick Start Guide 0.7

Additional information

Weight 150 g
Software license

Package contains

CFE Plus WiFi, Configuration cable, USB Cable
